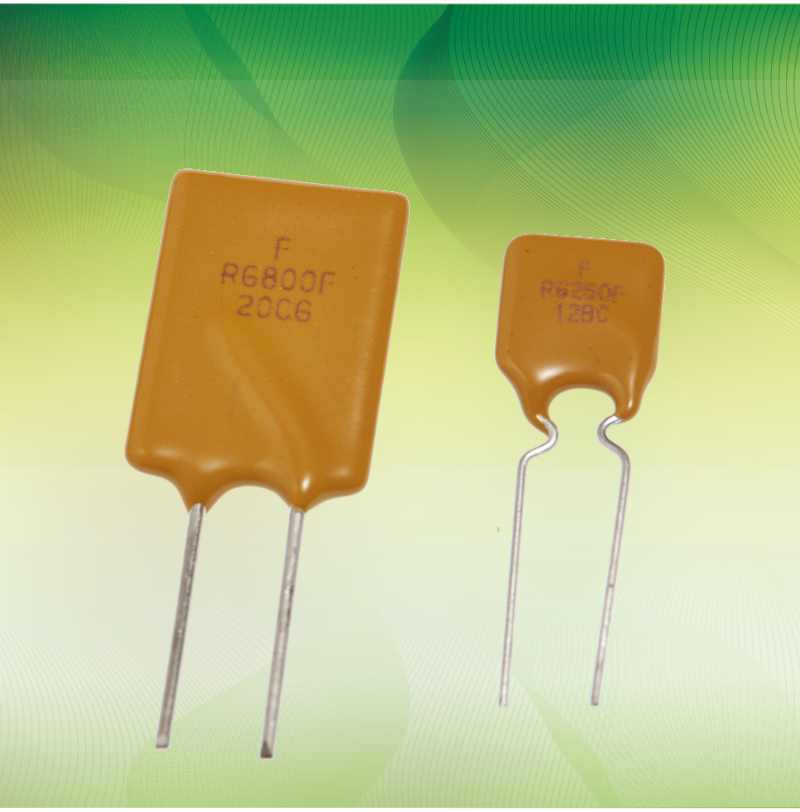

FRG Series - Radial Leaded PPTC
Application
Wide Variety of Electronic Equipment
Feature
Very high hold current, Solid state Radial-leaded product ideal for up to 16VDC
Operation Current
2.5 A~14.0A
Maximum Voltage
16VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY | AGENCY FILE NUMBER |
E211981 | |
E211981 | |
R50004084 |
Electrical Characteristics (23°C)
Part
Number
|
Hold
Current |
Trip
Current |
Max.
Time to Trip
|
Max
Current |
Rated
Voltage |
Typ.
Power
|
Resistance
|
|
IH, A
|
IT, A
|
@ 5 x IH, s
|
IMAX, A
|
V Max, V DC
|
Pd, W
|
Rmin
|
R1max
|
|
FRG250-16F |
2.5
|
4.7
|
5.0
|
100
|
16
|
1.0
|
0.022
|
0.053
|
FRG300-16F |
3.0
|
5.1
|
2.0
|
100
|
16
|
2.3
|
0.034
|
0.105
|
FRG400-16F |
4.0
|
6.8
|
3.5
|
100
|
16
|
2.4
|
0.020
|
0.063
|
FRG500-16F |
5.0
|
8.5
|
3.6
|
100
|
16
|
2.6
|
0.014
|
0.044
|
FRG600-16F |
6.0
|
10.2
|
5.8
|
100
|
16
|
2.8
|
0.009
|
0.033
|
FRG700-16F |
7.0
|
11.9
|
8.0
|
100
|
16
|
3.0
|
0.006
|
0.021
|
FRG800-16F |
8.0
|
13.6
|
9.0
|
100
|
16
|
3.0
|
0.005
|
0.018
|
FRG900-16F |
9.0
|
15.3
|
12.0
|
100
|
16
|
3.3
|
0.004
|
0.015
|
FRG1000-16F |
10.0
|
17.0
|
12.5
|
100
|
16
|
3.3
|
0.003
|
0.012
|
FRG1100-16F |
11.0
|
18.7
|
13.5
|
100
|
16
|
3.7
|
0.003
|
0.010
|
FRG1200-16F |
12.0
|
20.4
|
16.0
|
100
|
16
|
4.2
|
0.002
|
0.009
|
FRG1400-16F |
14.0
|
23.8
|
20.0
|
100
|
16
|
4.6
|
0.002
|
0.008
|
Thermal Deratng
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
Derating %
|
148%
|
132%
|
116%
|
100%
|
91%
|
84%
|
76%
|
69%
|
60%
|
48%
|

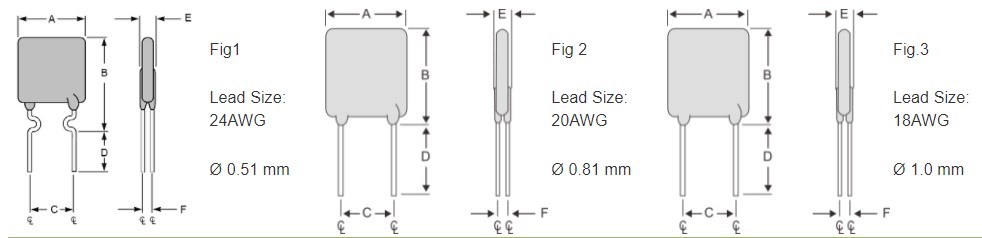

Product Dimension
Part Number
|
Fig.
|
A
|
B
|
C
|
D
|
E
|
F
|
Max
|
Max
|
Typ
|
Min
|
Max
|
Typ
|
||
FRG250-16F |
1
|
8.9
|
12.8
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG300-16F |
2
|
7.1
|
11.0
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG400-16F |
2
|
8.9
|
12.8
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG500-16F |
2
|
10.4
|
14.3
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG600-16F |
2
|
10.7
|
17.1
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG700-16F |
2
|
11.2
|
19.7
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG800-16F |
2
|
12.7
|
20.9
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG900-16F |
2
|
14.0
|
21.7
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG1000-16F |
2
|
16.5
|
24.1
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG1100-16F |
2
|
17.5
|
26.0
|
5.1
|
7.6
|
3.0
|
1.2
|
FRG1200-16F |
3
|
17.5
|
28.0
|
10.2
|
7.6
|
3.6
|
1.4
|
FRG1400-16F |
3
|
27.9
|
27.9
|
10.2
|
7.6
|
3.6
|
1.4
|
